Heat Exchangers
Home Locomotive Products Plate Type Oil Cooler Heat Exchangers General Information About Our Company Contact Us Motorsports



Model 1250

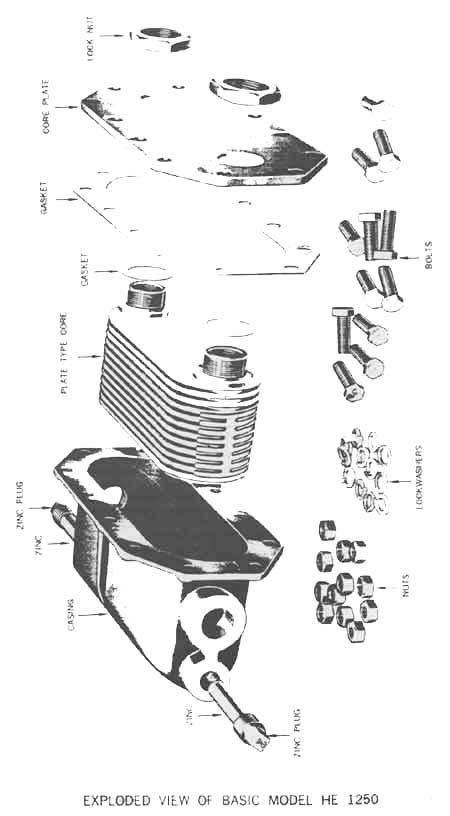

Exploded View of Basic Model HE 1250

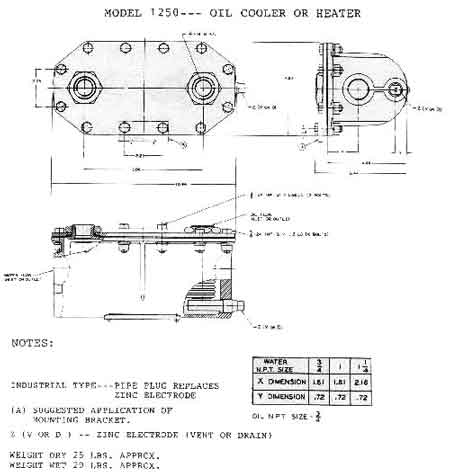

Oil Cooler or Heater Diagram
Core Assembly Diagram

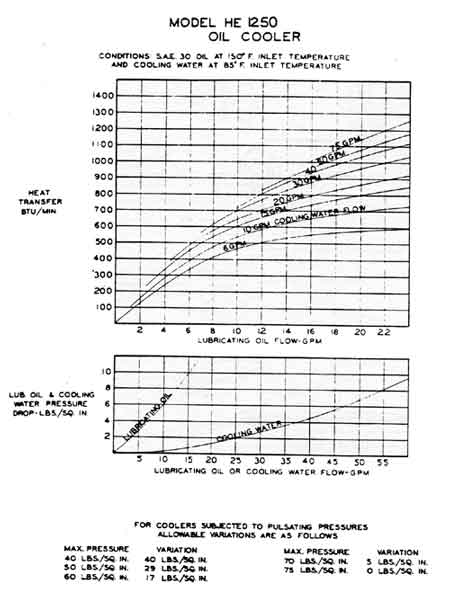

Cooling Performance Curves

Model 1060

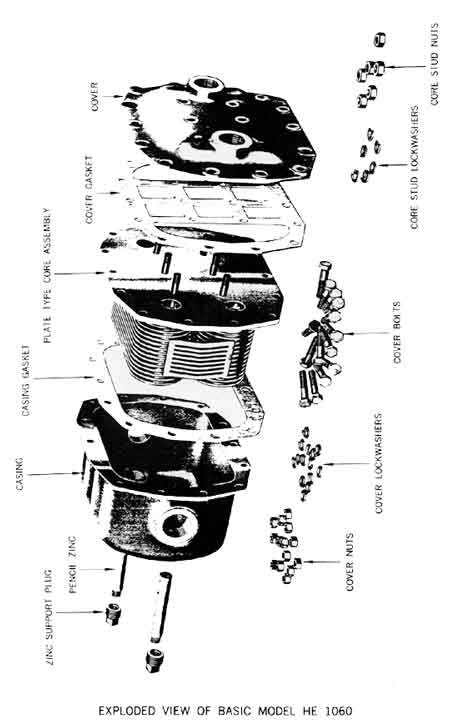

Exploded View of Basic Model HE 1060

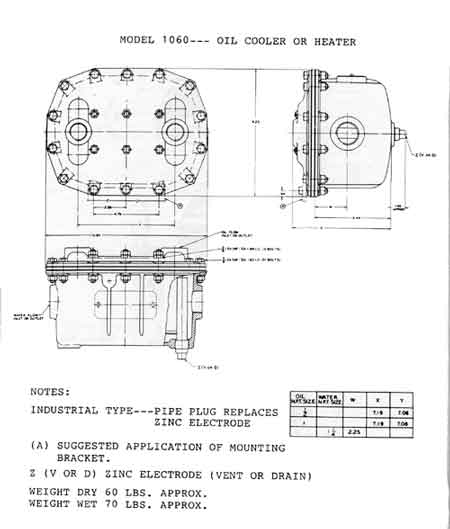

Oil Cooler or Heater Diagram

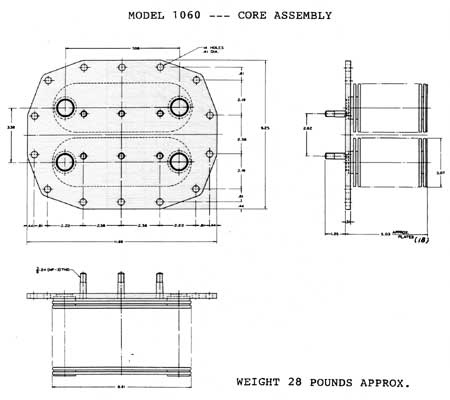

Core Assembly Diagram

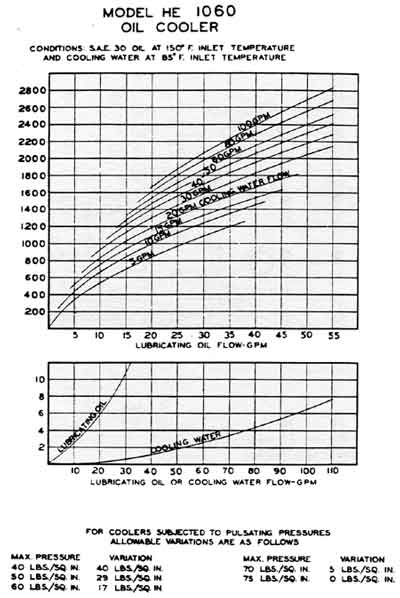

Cooling Performance Curves

Model 1070

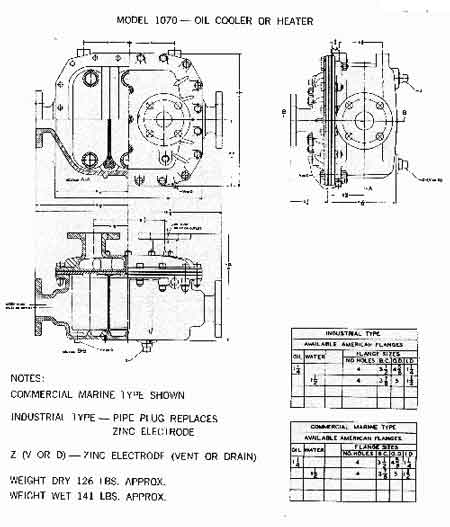

Oil Cooler or Heater Diagram

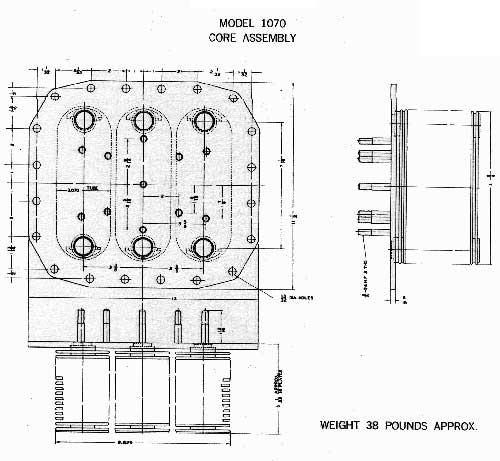

Core Assembly Diagram

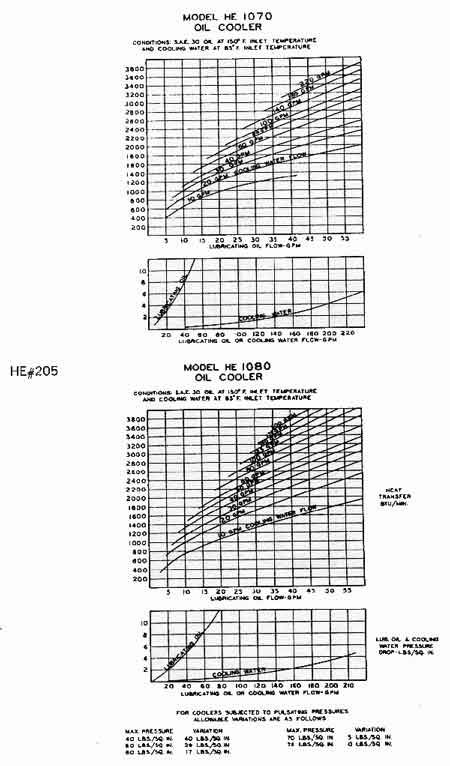

Cooling Performance Curves

Model 1080

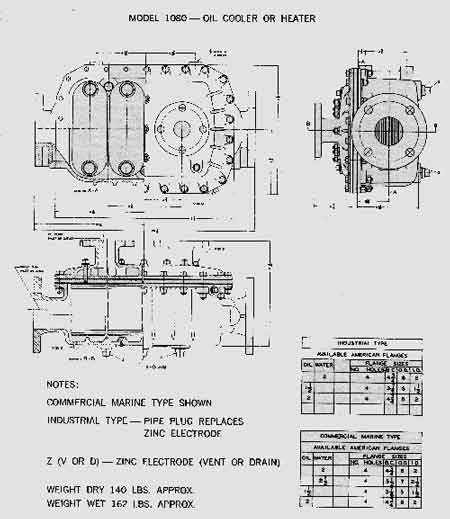

Oil Cooler or Heater Diagram

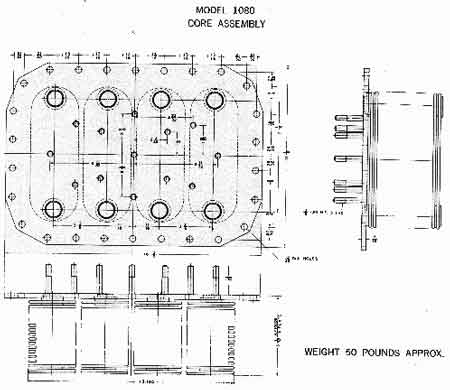

Core Assembly Diagram
Cooling Performance Curves



Casing- The casing is made from a red brass alloy for maximum corrosion resistance.

Core Plate- The core plate is made of a stainless steel alloy, also for corrosion resistance purposes.

Fittings- Fittings are made of a brass alloy.

Nuts & Bolts- Nuts and bolts are coated with a zinc plating.

Summary- All material used to manufacture these heat exchangers are of a corrosion resistance alloy, this combined with it's high efficiency, compactness, lightweight and durability makes these high quality heat exchangers.
